Magnetic diagnostics
The magnetic diagnostic coils will be installed as the sensors of plasma control and in order to measure basic plasma parameters. The magnetic diagnostic coils include magnetic field probes, Rogowski loops, one turn loops, diamagnetic loops and saddle coils and they are summarized in table 1. The magnetic coils for the poloidal magnetic field measurement will be installed for equilibrium reconstruction and plasma control. These coils will be installed both on the vacuum vessel and on the stabilizing plate. They are utilized also for low frequency MHD modes.
Type | Measurement | Number | Channel | Purpose |
Magnetic probe for Plasma control | Poloidal magnetic field | 23×2 | 46 | Equilibrium reconstruction and plasma control. Low frequency MHD mode. |
Magnetic probe for RWM control | Poloidal and radial magnetic field | 108 (18(pol) x 6(tor)) | 216 (17 also for plasma control) | RWM control |
Magnetic probe for MHD | Poloidal magnetic perturbation | 32 + 9 | 41 | MHD mode measurement |
Rogowski loop | Plasma current | 4 | 4 | Around the plasma |
Rogowski loop | VV eddy current | 4 | 4 | Around the vacuum vessel |
Rogowski loop | VV eddy current | 4 | 4 | Along the inner wall of VV |
Rogowski loop | SP eddy current | 4 | 4 | Around the stabilizing plate |
Oneturn loop | Poloidal flux | 34 | 34 | Equilibrium reconstruction and plasma control |
Diamagnetic loop | Diamagnetic flux | 4 sets | 8 | Plasma stored energy |
Saddle coils | Radial magnetic field | 36 (18×2) | 36 | Low frequency MHD mode.Rotation and non- rotating MHD |

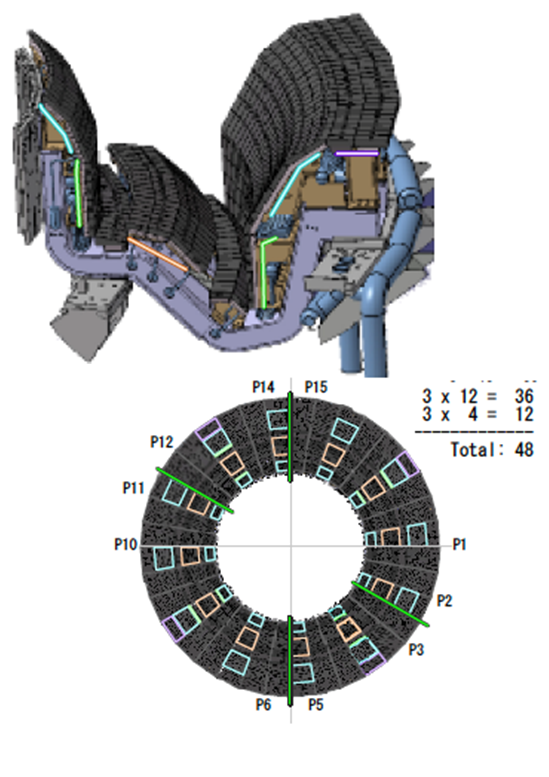

Halo current | 48 | 48 | 48 | |
Total | 426 |
Table 1 Magnetic Diagnostic Coils
